Журнал «Боль. Суставы. Позвоночник» Том 13, №2, 2023

Вернуться к номеру

Математична модель формування дегенеративно-дистрофічних змін у колінному суглобі при його згинальній контрактурі на пізніх стадіях ревматоїдного артриту

Математична модель формування дегенеративно-дистрофічних змін у колінному суглобі при його згинальній контрактурі на пізніх стадіях ревматоїдного артриту

Авторы: S.I. Gerasymenko, A.M. Babko, A.S. Gerasymenko, D.I. Kachan
State Institution “Institute of Traumatology and Orthopedics of the NAMS of Ukraine”, Kyiv, Ukraine

Рубрики: Ревматология, Травматология и ортопедия

Разделы: Клинические исследования

Версия для печати


Резюме

Актуальність. Біомеханічні чинники при ревматоїдному артриті (РА) можуть відігравати важливу роль в ініціюванні та прогресуванні дегенеративних процесів у суглобі, вторинних щодо запального процесу. Проте послідовність біомеханічних і біохімічних процесів, що регулюють ці події in vivo, поки недостатньо ясна. Розуміння величин біомеханічних навантажень на суглобові поверхні в умовах контрактури суглобів нижніх кінцівок при РА і участь у цьому процесі м’язових сил може сприяти розвитку нових поглядів і підходів до лікувальних заходів, специфічних для кожної стадії захворювання. Мета: створити імітаційну комп’ютерну 3D-модель колінного суглоба (КоС) при його згинальній контрактурі на пізніх стадіях РА з метою об’єктивної оцінки функціонального стану суглоба й прилеглих тканин та виявлення перспектив лікування та контролю ефективності реабілітаційних заходів. Матеріали та методи. В основу аналітичних розрахунків покладено дані попередніх досліджень щодо кількісної оцінки контрактури КоС (піддатливість контрактури зовнішній коригуючий дії) та розрахунки суглобових сил, що виникають при ходьбі пацієнта з РА. Визначення напружень та навантажень у КоС проводили при згинально-розгинальній контрактурі 30°. Результати. Для вирішення завдання розроблено декілька розрахункових схем, на яких для більшої наочності зображені всі розміри та діючі сили в натуральну величину для конкретної моделі. Унаслідок примусового пасивного згинання в КоС на 6° навантаження на виростки плато великогомілкової кістки збільшилося на 12,8 %, унаслідок пасивного розгинання в КоС на 3° — на 95,2 %, що є критичним та може призводити до деградації кісткової тканини в ділянці контакту. Висновки. Зростання навантаження на задні відділи плато великогомілкової кістки та, відповідно, напружень у ділянках контакту виростків стегнової кістки з плато великогомілкової кістки може призводити до прогресування клінічної картини РА з посиленням явищ артрофіброзу та остеоартриту саме в задніх відділах КоС.

Background. Rheumatoid arthritis (RA) is an immunomodulatory, chronic inflammatory disease accompanied by the proliferation and articular cartilage destruction that cause disability. Biomechanical factors in RA can play an important role in the onset and progress of the joint degenerative processes, secondary to the inflammation process. The biomechanical factors in RA can play an essential role in the start and progress of the degenerative processes within the joint that are secondary to the inflammatory process. Materials and methods. A solid simulation 3D-model of the knee joint was created that contained both tibia and fibula, the femur bone, femoral condyle cartilage and tibial plateau cartilage, menisci. It was done for further analytical calculations and finite element modeling calculations. Analytical calculations are based on the data of previous studies of quantitative evaluation of the knee joint contracture (compliance of contracture to the external corrective action) and on calculations data of the joint forces that manifest in ambulation of the patient with RA. Results. The created simulation computer 3D-model of a knee joint with its flexion contracture at late stages of RA shows that the forced passive flexion in the knee joint to 6°, the load on the condyles of the tibial plateau increased by 12.8 %, and as a result of forced passive flexion in the knee joint to 3°, the load on the condyles of the tibial plateau increased by 95.2 %, which is critical and may cause degradation of the bone tissue in the contact area. Conclusions. Increase of load on the lateral areas of the tibial plateau and, correspondingly, the tensions on the contact areas of the femur bone condyles with the tibial plateau, may contribute to the progress of the clinical picture of RA with the increase of arthrofibrosis and osteoarthritis events, particularly in the lateral areas of the knee joint.


Ключевые слова

ревматоїдний артрит; колінний суглоб; згинальна контрактура; математичне моделювання; метод скінченних елементів; напружено-деформуючий стан

rheumatoid arthritis; knee joint; flexion contracture; mathematic modelling; finite element method; load-deformation state

doi: http://dx.doi.org/10.22141/pjs.13.2.2023.371

Introduction

Rheumatoid arthritis (RA) is an immunomodulatory, chronic inflammatory disease accompanied by the prolife–ration and articular cartilage destruction that cause disabi–lity. The etiopathogenesis of RA is still not clear, however, several stages of its pathophysiology were discovered, its key feature being inflammatory synovitis [1].
Although, historically the cartilage is regarded as “an innocent bystander” recent data suggest that cartilage degradation in RA is related to the imbalance of anabolic and catabolic activity of the joint chondrocytes, indirectly connected to the synovitis and arthritis. In addition to inflammation, the metabolic activity of the chondrocytes is also affected by the biophysical factors (mechanical stress) [2]. In particular, the biomechanical factors in RA can play an essential role in the start and progress of the degenerative processes within the joint that are secondary to the inflammatory process. However, the sequence of biomechanical and biochemical processes regulating these events in vivo, is still vague [3].
Knee joint lesion in RA is accompanied by the formation of contractures and the development of discordant deformities in the lower limbs, which in turn leads to a partial or complete loss of a limb function [4].
An objective assessment of the functional status of the joint and adjacent tissues is a prerequisite for identification of the treatment prospect and efficiency mana–gement of rehabilitation measures [5]. However, the technological parameters and modes of operation of modern goniometers used by clinicians do not always allow diffe–rentiated action upon the inherent biomechanical pro–perties of the joints, direct monitoring of certain morpho-functional manifestations of the contracture (stiffness, instability, partial atrophies of the muscle and adjacent tissues), which reduces the effectiveness of exis–ting devices [6].

Materials and methods

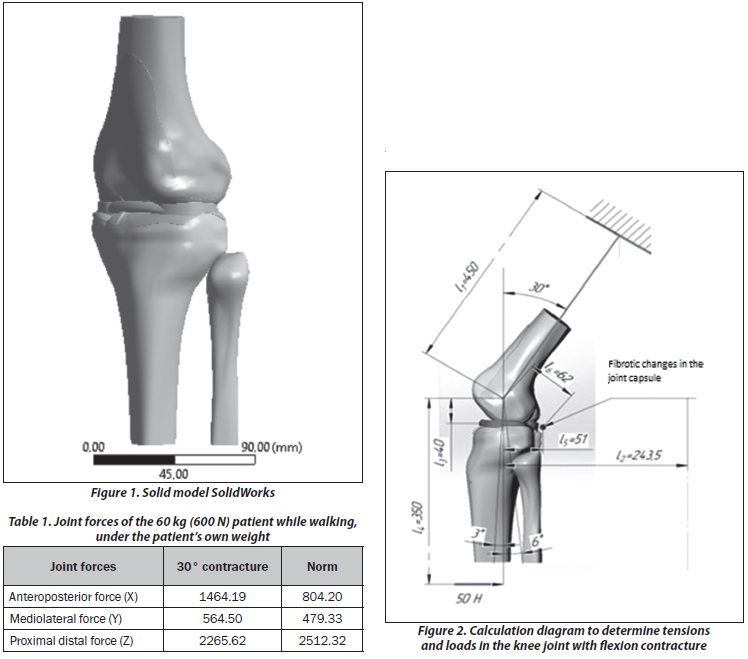

In the early stage, a solid simulation 3D-model of the knee joint was created that contained both tibia and fibula, the femur bone, femoral condyle cartilage and tibial plateau cartilage, menisci. It was done for further analytical calculations and finite element modeling calculations (Fig. 1).
Analytical calculations are based on the data of previous studies of quantitative evaluation of the knee joint contracture (compliance of contracture to the external corrective action) and on calculations data of the joint forces that manifest in ambulation of the patient with RA. Determination of tension and load in the knee joint was performed with flexion-extension contracture of 30°. Measurement of compliance indicators of the knee joint contracture regar–ding the external corrective action yielded average values of the passive motion angle ∆α, which is the angle of position change in the joint as a result of graduated force F = 50 N: in the direction of flexion — ∆α = 3°, in the direction of extension — ∆α = 6°.
Joint forces of the 60 kg (600 N) RA patient while wal–king and with the flexion-extension contracture in 30° position, as well as the normal indicators, obtained from our own simulation musculoskeletal modelling using the AnyBody software, are presented in Table 1.

Results

Several calculation diagrams were developed (Fig. 2) to solve the problem. For illustrative purposes, all dimensions and active forces are presented in full size for a specific model.

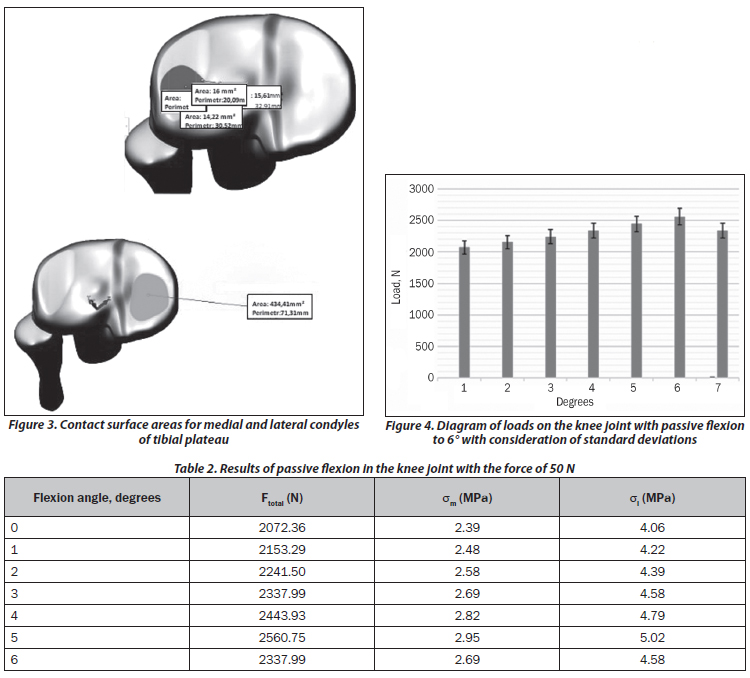

Measurements of contact surface on the tibial plateau were performed on a solid 3D-model using SolidWorks software tools (Fig. 3).
According to the curvature radius of o the medial and la–teral condyles, the area of contact on the medial condyle of the tibial plateau was 434 mm2, and the area of contact on the lateral condyle of the tibial plateau — 255 mm2. Both areas of contact in flexion position of the knee joint of 30° were insignificantly shifted backwards.
The following assumptions and limitations were introduced to solve these problems. For analytical calculations they do not account for presence of soft tissue structures in the area of contact. Contact takes place between the bones.
As the posterior surface of the joint capsule has fibrotic changes in it, additional center of rotation in the knee joint arises, and is shifted backwards extraarticularly during fle–xion to the following distance:
l5 = 51 mm sin х / 2,
where х is the angle between the axis of the femur bone and additional hinge center of rotation.
Assuming that the femur bone in the problem is immo–vable (tightly fixed). The area of contact surfaces does not change in flexion. Distribution of force between the medial and lateral condyles is 50/50.
Calculation of load on the joint surface of the tibial plateau with forced passive flexion by 6° in the knee joint with the force of 50 N. According to the calculations, total force was calculated by the formula:
where Ftotal is the total force that acts in the knee joint with the flexion contracture in a 30° position, х is the angle of action of total force on the tibial plateau.
The next step was the calculation of the total force at additional passive movement of the limb segment within the flexion range from 1 to 6°.
The following ratios were used to determine the tension indicators on the medial and lateral condyles of the tibial plateau:
where Fmi is the force that acts on the medial condyle respectively (i = 6), Smi = 434 mm2 is the area of contact of the medial condyle; аnd
where Fli is the force that acts on the lateral condyle respectively (i = 6); Sli = 255 mm2 is the area of contact of the la–teral condyle.
Resulting indicators of forces and tensions are presented in Table 2.
Thus, as a result of passive flexion in the knee joint to 6°, the load on the tibial plateau condyles has increased by 12.8 % (Fig. 4).
The concept of “admissible tensions” [σ] was introduced, equal to:
where nm = 2.6, for the bone and nm = 1.5 [11].
Compressive strength limits in this case vary from 17.5 to 93.4 МРа; conservatively (in the most dangerous variant) we have taken 17.5 МРа, accordingly:
Then the condition of strength for the model is satisfied when
Based on this, we can obtain minimal strength margin nmin = 6.93 / 5.02 = 1.38 for the position of passive flexion of 5° on the lateral condyle, that approaches the critical one (Fig. 5).

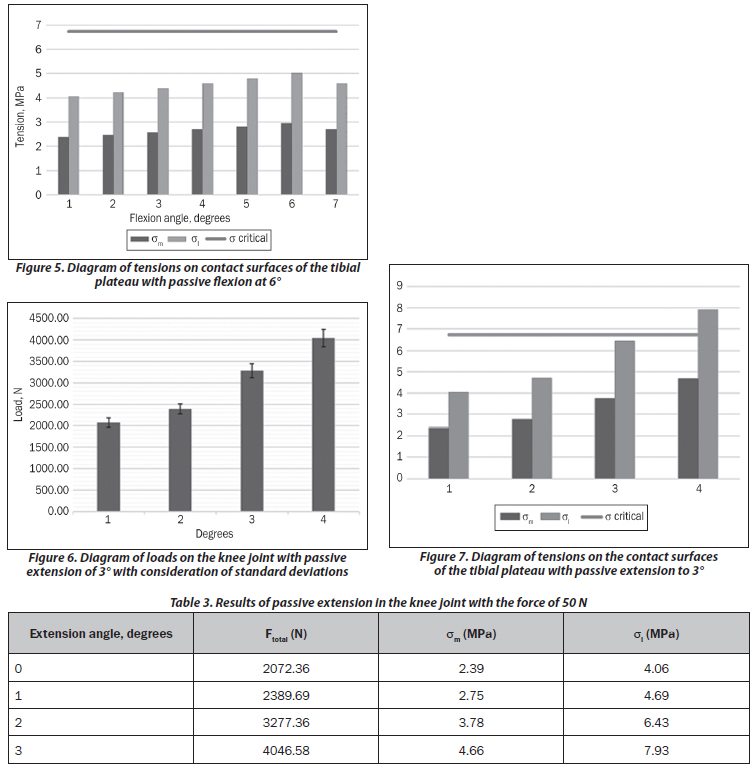

Calculation of load on the joint surface of the tibial plateau with forced passive extension at 3° in the knee joint with the force of 50 N. To solve this problem, let us introduce the following assumptions and limitations similarly to the previous problem. Total force that acts in the knee joint at extension contracture in the position of 30° is the same: Ftotal = 2072.4 N. The next step was the calculation of the total force at additional passive movement of the limb segment within the extension range from 1 to 3°. The obtained indicators are presented in Table 3.
Thus, as a result of passive extension in the knee joint to 3°, load on the condyles of the tibial plateau increased by 95.2 % (Fig. 6).
Based on this, we can obtain minimal strength margin nmin = 6.93 / 7.93 = 0.87 for the position of passive extension to 3° in the lateral condyle, which is critical for this position and may cause degradation of the bone tissue in the contact area.

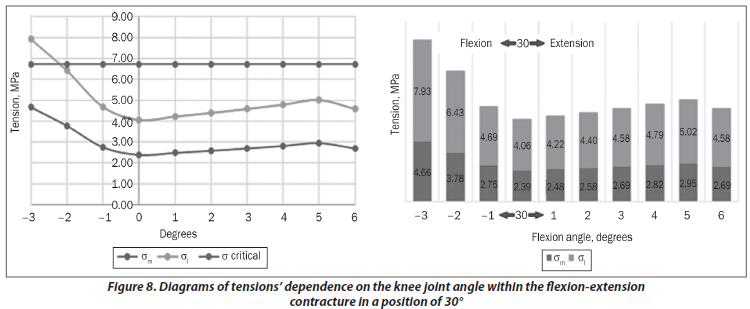

Calculation of load on the joint surface of the tibial plateau when standing with one support under the body weight 60 kg (600 N) within the flexion-extension contracture in a position of 30°. Total force acting on the knee joint is as follows:

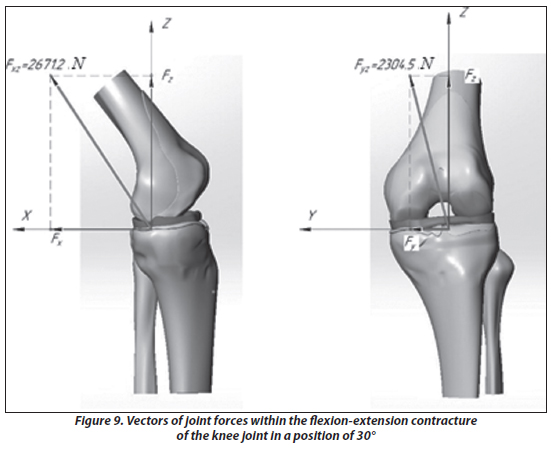

Direction and values of the intraarticular forces within the flexion-extension contracture of the knee joint in a position of 30° are presented in Fig. 9.
Considering the contact areas of the tibial plateau condyles, the tension on them was determined:
where Sm = 434 mm2 is the contact area of the medial condyle; Sl = 255 m2 is the contact area of the lateral condyle.

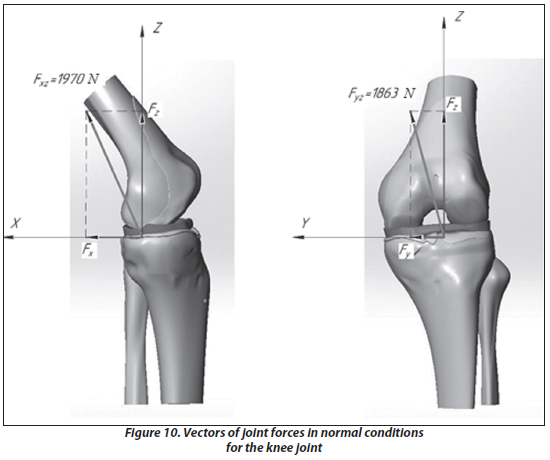

Let us look at the tension in normal conditions at the same positions of the knee joint, for comparison.
Considering the contact areas on the tibial plateau condyles, the tension on them was determined:
where Sm = 434 mm2 is the contact area of the medial condyle, Sl = 255 mm2 is the contact area of the lateral condyle.

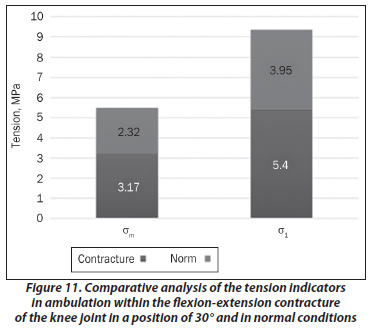

Comparative analysis of the tension indicators in ambulation within the flexion-extension contracture of the knee joint in a position of 30° and in normal conditions is presented in Fig. 11.

Discussion

With the development of clinical analysis methods of ambulation (3D kinetics and kinematics), a necessary tool emerged to search for differences between the pathological patterns of ambulation and its normal indices. Computer technologies and software development contribute to collection, analysis, and interpretation of ambulation data, as a tool to study the function of joints in RA [7, 9].
Significant decrease of excursion in thigh joint, knee joint, ankle joint (external-internal rotation, abduction-adduction, flexion-extension) with a contracture in patients with RA causes a complete dysfunction of a support [10]. Under such conditions, including marked pain reaction for the patient, the loads on all elements of the large joints and muscle groups of the lower limbs increase significantly [11].
Increase of the mechanical load, in the setting of an inflammatory process, capsular and ligamentous disorders, cartilage degradation, subchondral bone changes and –muscle imbalance contribute to the progress of joint and muscle contractures, as well as arthritic events in the large joints of the lower limbs, including in the setting of the ari–sing erosions of articular surfaces [12]. Therefore, the importance of mechanical factors in the destructive cascade of the processes in RA is beyond doubt [10].
Decreased muscle strength, discovered in the clinical study, is associated with the inflammatory process activity, radiologic abnormalities, and functional disorder degrees [13]. Contracture (Latin contracture — tightening, narro–wing) is a limitation of the normal functioning of the joint, related to pathological changes in the surrounding tissues: skin cover, muscles, tendons, ligaments, articular capsule, articular surfaces of bones (M24.5 according to ICD-10). The major sign of the contracture is a limitation of passive and active movements in the joint. In addition to the limitation of joint movements, any contracture is characterized by an early progression of muscle atrophy, which is evident by a decrease in their volume, strength, and endurance [14, 15]. The term “contracture position” refers to the forced position of the joint due to the limitation of movements in it. Depending on the degree of the joint mobility limitation, the contracture can be with preservation of the motion range and possibility of its examination (goniometry); rigid — with a lack of flexibility and compliance, the range of motion in the joint is about 5°, which cannot be determined by goniometer; ankylosing — a complete loss of motor activity in the joint [16, 17].
Understanding the intensity of the biomechanical load on the articular surfaces in the setting of contracture of the joints of the lower limbs in RA and the participation of the muscle forces in this process, can contribute to the development of new views and approaches to the tactic of therapeutic measures that are specific to each stage of the disease [18].
As can be seen from the obtained results, the tension in the contact area on the lateral condyle of the tibial plateau is increased by 36.71 %, whereas on the medial condyle of the tibial plateau — by 36.64 %, under the conditions of flexion-extension contracture of the knee joint in a position of 30°. To validate the obtained results of mathematical analytical calculations, simulation modelling with calculations of stress-strain condition will be performed in the ANSYS software environment at the next stage. In addition, the effect of cyclic loads on joint surfaces of knee joints in patients with rheumatoid arthritis will be studied. According to the curvature radius of the medial and lateral condyles, the area of contact on the medial condyle of the tibial plateau was 434 mm2, and the area of contact on the lateral condyle of the tibial plateau — 255 mm2. Both areas of contact in flexion position of the knee joint of 30° were insignificantly shifted backwards.
As a result of forced passive flexion in the knee joint to 6°, the load on the condyles of the tibial plateau increased by 12.8 %, and as a result of forced passive flexion in the knee joint to 3°, the load on the condyles of the tibial plateau increased by 95.2 %, which is critical and may cause degradation of the bone tissue in the contact area.
When standing with one support under the body weight 60 kg (600 N) in conditions of flexion-extension contracture in a position of 30°, an increase of contact tensions on the la–teral condyle of the tibial plateau by 36.71 % (5.40 МРа) can be observed; on medial condyle — by 36.64 % (3.17 МРа), in relation to the values of an intact knee joint (3.95 and 2.32 МPа, respectively).

Conclusions

The importance of mechanical factors in the destructive cascade of the processes in RA is beyond doubt. Decreased muscle strength, discovered in the clinical study, is associa–ted with the inflammatory process activity, radiologic abnormalities, and functional disorder degrees. Understan–ding the intensity of the biomechanical load on the articular surfaces in the setting of contracture of the joints of the lo–wer limbs in RA, and the participation of the muscle forces in this process, can contribute to the development of new views and approaches to the tactic of therapeutic measures that are specific to each stage of the disease. Increase of load on the lateral areas of the tibial plateau and, correspon–dingly, the tensions on the contact areas of the femur bone condyles with the tibial plateau may contribute to the progress of the clinical picture of rheumatoid arthritis with the increase of arthrofibrosis and osteoarthrosis events, particularly in the lateral areas of the knee joint.

Received 12.04.2023
Revised 30.05.2023
Accepted 02.06.2023

Список литературы

  1. Watson R.S., Gouze E., Levings P.P., Bush M.L., Kay J.D. et al. Gene delivery of TGF-β1 induces arthrofibrosis and chondrometaplasia of synovium in vivo. Lab. Invest. 2010 Nov. 90(11). 1615-27. doi: 10.1038/labinvest.2010.145.
  2. Ouyang X., Ghani A., Mehal W.Z. Inflammasome biology in fibrogenesis. Biochim. Biophys. Acta. 2013 Jul. 1832(7). 979-88. doi: 10.1016/j.bbadis.2013.03.020.
  3. Canovas F., Dagneaux L. Quality of life after total knee arthroplasty. Orthop. Traumatol. Surg. Res. 2018 Feb. 104(1S). S41-S46. doi: 10.1016/j.otsr.2017.04.017.
  4. Øiestad B.E., Juhl C.B., Eitzen I., Thorlund J.B. Knee extensor muscle weakness is a risk factor for development of knee osteoarthritis. A systematic review and meta-analysis. Osteoarthritis Cartilage. 2015 Feb. 23(2). 171-7. doi: 10.1016/j.joca.2014.10.008.
  5. Dean C.S., Chahla J., Mikula J.D., Mitchell J.J., LaPrade R.F. Arthroscopic Posteromedial Capsular Release. Arthrosc. Tech. 2016 May 16. 5(3). e495-500. doi: 10.1016/j.eats.2016.01.034.
  6. Herman M.J., Martinek M.A., Abzug J.M. Complications of tibial eminence and diaphyseal fractures in children: prevention and treatment. J. Am. Acad. Orthop. Surg. 2014 Nov. 22(11). 730-41. doi: 10.5435/JAAOS-22-11-730.
  7. Dell’Isola A., Smith S.L., Andersen M.S., Steultjens M. Knee internal contact force in a varus malaligned phenotype in knee osteoarthritis (KOA). Osteoarthritis Cartilage. 2017 Dec. 25(12). 2007-2013. doi: 10.1016/j.joca.2017.08.010.
  8. Werner B.C., Cancienne J.M., Miller M.D., Gwathmey F.W. Incidence of Manipulation Under Anesthesia or Lysis of Adhesions After Arthroscopic Knee Surgery. Am. J. Sports Med. 2015 Jul. 43(7). 1656-61. doi: 10.1177/0363546515578660.
  9. George J.M. Valgus Deformity Correction in Total Knee Replacement: An Overview. Knee Surgery — Reconstruction and Replacement. IntechOpen. 2020. doi: 10.5772/intechopen.89739.
  10. Schiavone Panni A., Cerciello S., Vasso M., Tartarone M. Stiffness in total knee arthroplasty. J. Orthop. Traumatol. 2009 Sep. 10(3). 111-8. doi: 10.1007/s10195-009-0054-6.
  11. Formby P.M., Donohue M.A., Cannova C.J., Caulfield J.P. Hydraulic distension of the knee: a novel treatment for arthrofibrosis after total knee replacement (case series). ANZ J. Surg. 2016 Jun. 86(6). 480-2. doi: 10.1111/ans.13540.
  12. Khatri K., Bansal D., Rajpal K. Management of Flexion Contracture in Total Knee Arthroplasty [Internet]. Knee Surgery — Reconstruction and Replacement. IntechOpen. 2020. doi: 10.5772/intechopen.90417.
  13. Kukin I.A., Kirpichjov I.V., Maslov L.B., Vihrev S.V. Particularities of the strength characteristics of spongy bone in diseases of the hip joint. Fundamental Research. 2013. 7. 328-33.
  14. Ipach I., Mittag F., Lahrmann J., Kunze B., Kluba T. Arthrofibrosis after TKA — influence factors on the absolute flexion and gain in flexion after manipulation under anaesthesia. BMC Musculoskelet. Disord. 2011 Aug 12. 12. 184. doi: 10.1186/1471-2474-12-184.
  15. Kalson N.S., Borthwick L.A., Mann D.A., Deehan D.J., Lewis P. et al. International consensus on the definition and classification of fibrosis of the knee joint. Bone Joint J. 2016 Nov. 98-B(11). 1479-1488. doi: 10.1302/0301-620X.98B10.37957.
  16. Pujol N., Boisrenoult P., Beaufils P. Post-trauma–tic knee stiffness: surgical techniques. Orthop. Traumatol. Surg. Res. 2015 Feb. 101(1 Suppl.). S179-86. doi: 10.1016/j.otsr.2014.06.026.
  17. Бабко А.М., Герасименко А.С., Мазевич В.Б. Механізм формування контрактур кульшового та колінного суглобів на ранніх стадіях ревматоїдного артриту (натурний експеримент). Вісн. ортопедії травматології та протезування. 2019. 4. 57-65. doi:10.37647/0132-2486-2019-103-4-53-61.
  18. Deshmukh A.J., Rathod P.A., Moses M.J., Snir N., Marwin S.E., Dayan A.J. Does a non-stemmed constrained condylar prosthesis predispose to early failure of primary total knee arthroplasty? Knee Surg. Sports Traumatol. Arthrosc. 2016 Oct. 24(10). 3194-3199. doi: 10.1007/s00167-014-3494-3.
